Chronograph Basics: Measuring Velocity for Load Development

You can't develop a precision load blind. Velocity data is the bridge between your reloading bench and a ballistic solver — and a chronograph is the tool that collects it. If you're shooting beyond 500 yards and guessing at your muzzle velocity, you're leaving consistency on the table.

What a Chronograph Measures

A chronograph measures the time it takes for a projectile to travel between two known points, then converts that into feet per second (fps). Modern chronographs capture this data for every shot and report:

• Average velocity (AVG): The mean fps across your string of shots
• Standard deviation (SD): How much individual shots deviate from the average — the most critical metric for precision shooters
• Extreme spread (ES): The difference between the fastest and slowest shot in your string
• High/Low: The fastest and slowest individual shots recorded

Why SD Is the Number That Matters

Average velocity tells your ballistic solver what elevation to dial. Standard deviation tells you how much that elevation will vary from shot to shot. At 1,000 yards, an SD of 30 fps can create 6–8" of vertical dispersion on an otherwise perfectly tuned rifle. For ELR, target SD under 10 fps — single digits if possible.

ES tells a similar story but is more sensitive to outliers. A single pressure spike or hangfire can create a large ES while your SD stays reasonable. Pay attention to both.

Types of Chronographs

Doppler Radar Chronographs

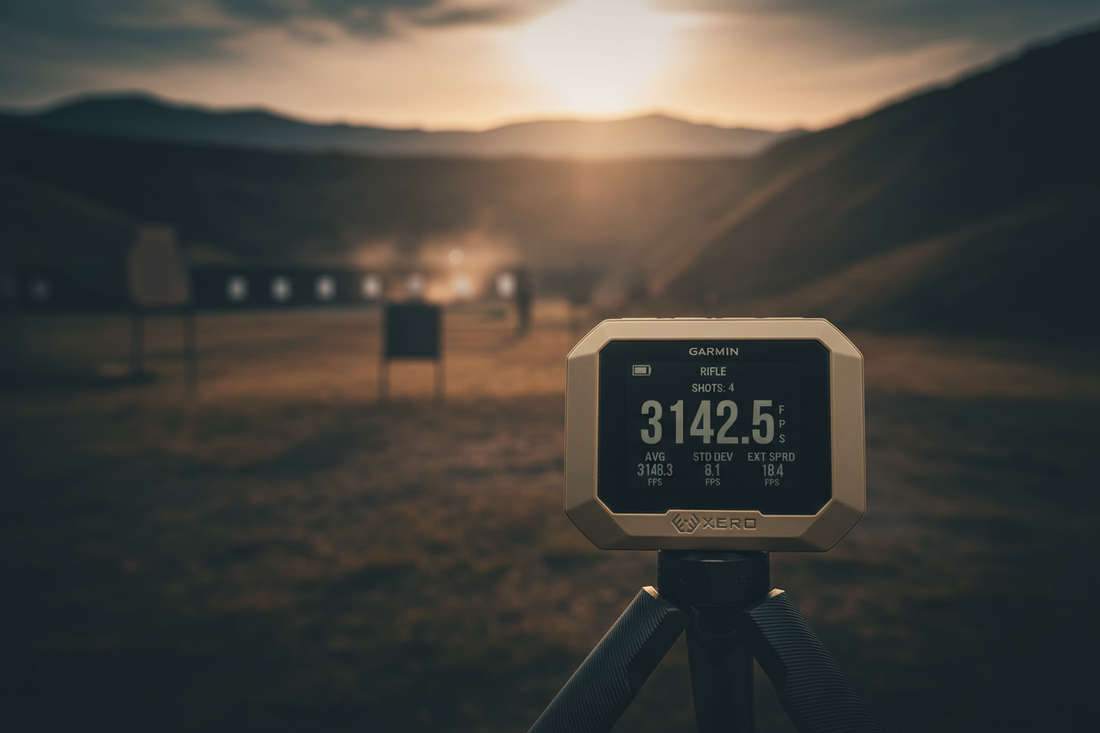

The gold standard for ELR and serious precision work. Doppler-based chronographs like the Garmin Xero C1 Pro use radar to track the bullet throughout its entire flight, providing muzzle velocity, downrange velocity, and BC data in a single firing session. No screens to shoot through, no lighting requirements, and no setup anxiety.

→ Shop Garmin chronographs

Optical Chronographs

Traditional optical units use two light sensor screens placed downrange from the muzzle. The bullet breaks each screen in sequence and the time is recorded. These are accurate and affordable, but require careful screen alignment and adequate lighting. They're susceptible to solar interference and can be damaged by muzzle blast if placed too close.

Muzzle-Mounted Chronographs

Units that attach to or clamp near the muzzle use sensors or radar to measure velocity without any downrange setup. Convenient for solo range sessions, though accuracy can vary by model.

Placement and Setup Tips

• For optical units, place screens 10–15 feet from the muzzle to avoid muzzle blast interference
• Align screens so the bullet passes directly through the center of each sensor
• Shoot with the sun behind you or in overcast conditions for optical units — direct sunlight at an angle causes false readings
• For radar units like the Garmin Xero C1 Pro, mount it directly behind the muzzle per manufacturer specs — no screens required
• Always fire a minimum of 5 shots for SD/ES data; 10 shots gives a statistically more meaningful result

Interpreting Your Data

Once you have a string of velocity data, here's how to use it:

• Feed your ballistic solver: Use your average velocity as your muzzle velocity input. Most solvers (Applied Ballistics, Kestrel, etc.) work from this baseline.
• Compare loads: When running a ladder or OCW test, low SD at a given charge weight signals a pressure node — often your best load candidate.
• Track lot-to-lot changes: When you switch powder, primer, or brass lots, re-chronograph even if the load recipe is identical. Component variation is real.
• Temperature sensitivity: Chronograph your load in cold and warm conditions if you shoot in varying climates. Some powders show significant velocity swings with temperature.

Record Keeping

Log every string: date, conditions (temperature, altitude, humidity), firearm, load specs, and the full velocity string — not just averages. Over time this data becomes invaluable for troubleshooting and load refinement.

Bottom Line

A chronograph is not optional equipment for precision shooting — it's a required instrument. Invest in a quality unit, learn to interpret SD and ES, and let the data guide your load development process.
